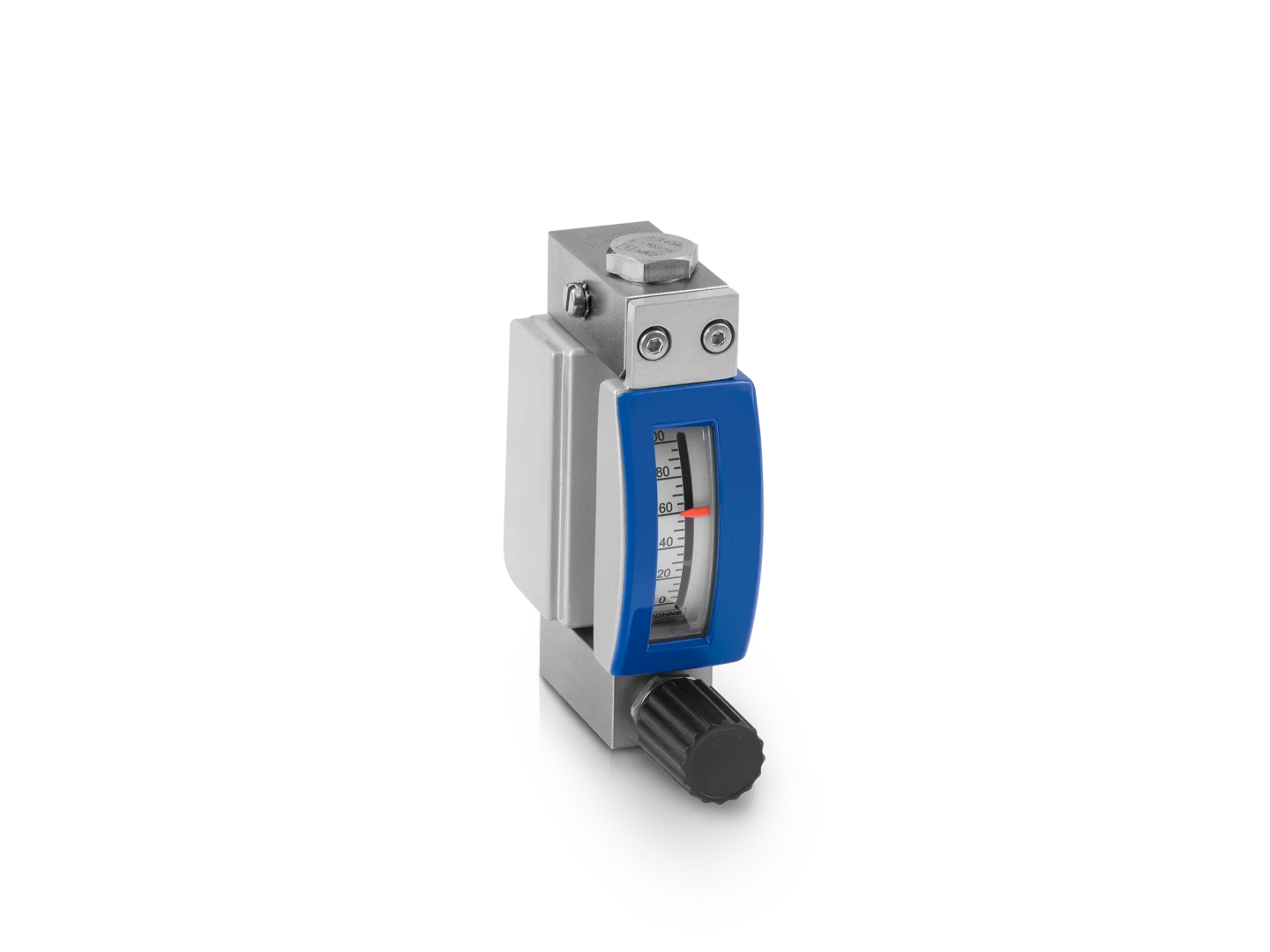

DK32/34

The DK32/34 is a variable area (VA) flowmeter for measuring low flow rates of liquids and gases. The tried and tested meter is particularly suitable for flow monitoring and dosing in gas analyser systems or on purge panels. Due to its robust all-metal design it can also be used in difficult process conditions with temperatures up to +200°C / +392°F or pressures up to 400 barg / 5800 psig. It is available with a metering valve as standard to accurately set the flow value.

The DK32/34 operates without auxiliary power supply. It features a local indication with optional MIN/MAX limit switches (NAMUR), a reed contact or analogue output (4…20 mA). To provide constant flow rates in case of variable inlet or outlet pressures, the VA meter is also available with flow regulators. It comes with horizontal or vertical process connections for NPT or G thread, flange adapters and many other connection options. The VA meter has various approvals for hazardous areas and is suitable for use in Safety Instrumented Systems (SIS).

Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.

Simple, low-cost installation: Able to measure and display without auxiliary power supply
Purgemeter with 2 optional limit switches for flow monitoring
Various stainless steel and alloy sensor materials
Optional surface passivation with SilcoNert®2000 for trace-level analysis
Ingress protection IP65/66
Full scale value for liquids: 1.6…150 l/h / 0.4…40 GPH
Full scale value for gases: 16…4,800 l/h / 0.6…170 SCFH
Turndown ratio 10:1
Maximum measuring error: ±4% (acc. to VDI/VDE 3513-2) or ±3% of full scale
Suitable for use in Safety Instrumented Systems with SIL 2, in redundant design (1oo2) also in SIL 3 applications (type A device)
Approved for hazardous areas
