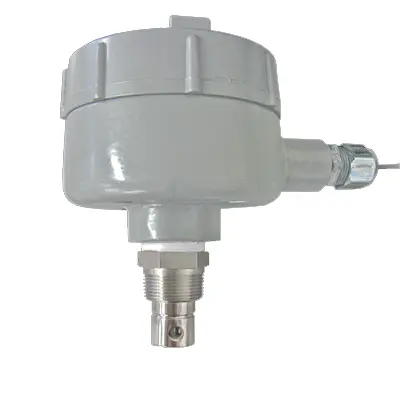

CS41 Conductivity Sensor

Model CS41 sensor has been designed for high pressure, high-temperature conductivity measurements, and is an ideal choice for boiler control applications. Blowdown control, condensate monitoring, leak detection on heat exchangers, and steam purity measurements are just a few of the many applications in which this rugged and reliable sensor can be used.

Digitally Enabled

Measures conductivity directly in process with high-temperature option.
O-ring seals used on all versions for high on-stream reliability.
Boiler condensate and blowdown control without coolers

Wetted materials of construction are 316 stainless steel and Teflon, depending on the range of temperature required.
All possible leak paths through the sensor are double sealed with EPR 0-rings for maximum on-stream reliability.
Hot water is a severe environment for any elastomer, and the front seals bear the brunt of a chemical attack, allowing the back seals to remain relatively unaffected.
