This is a product of KROHNE Marshall.

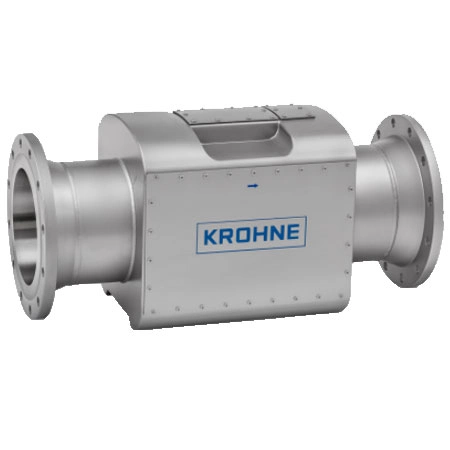

ALTOSONIC 5

The ALTOSONIC 5 is a multi-path ultrasonic flowmeter for custody transfer (CT) measurement in upstream and midstream applications of the oil and gas industry. The high accuracy meter is suitable for measuring all types of crudes in transportation, processing, loading or offloading applications as well as all types of refined products or chemicals. Due to its unique paths configuration, the ALTOSONIC 5 is suitable for all flow regimes without Reynolds number limitations. In addition, a vertically mounted transducer pair detects gas on top of the liquid.

The ALTOSONIC 5 is also ideally suitable for cryogenic applications (down to -200°C / -328°F) as well as applications with high viscosity up to 1500 cSt. Its full bore design enables maintenance-free operation without pressure loss. With the condition-based monitoring system and the optional diagnostics expert system the accuracy of the meter is evaluated 24/7 inside the meter itself enabling the operator to take preventive action when necessary. This all results in considerable cost savings in capital expenditures (CAPEX) and operational expenditures (OPEX).

Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.

Bi-directional flow measurement with the widest certified turndown ratio (75:1)
Unique path configuration plus one vertical path for diagnostics
Independent of flow profile (Reynolds number) and product variations
Certified viscosity range up to 1500 cSt
Reduced installation length: down to 5D with flow conditioner
Transducer replacement under process conditions
Extensive diagnostic features: recognition and visualisation of complete flow profile
Full pipe guarantee: integrated entrained gas detection
Significantly easier small volume proving
Easy integration with SUMMIT 8800 or any other approved flow computer
No moving parts, no wear, no pressure loss
