Condensate present in the steam system hampers heat transfer.Steam traps drain condensate and trap system,ensuring high heat transfer rates and hence fuel savings.
As steam travels from the boiler it begins to lose its heat and condenses into
water. This hot water formed, known as condensate, does not transmit heat
effectively and hence needs to be removed from the steam system.
A steam trap is used to effectively remove condensate from the steam piping /
equipment preventing condensate accumulation in the heating equipment
while simultaneously preventing steam from escaping from the system. This
delivers higher heat transfer rates and thus less steam consumption, resulting
in fuel savings.

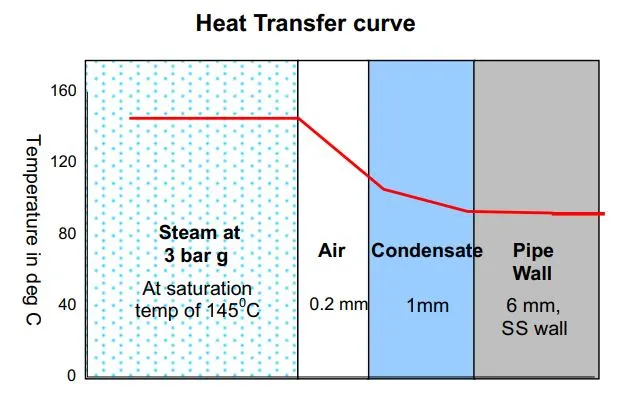

The graph below represents the temperature gradient across a steam pipe carrying steam at 3 bar (g). In this case 12.5°C is lost due to a 1 mm
Effective evacuation of condensate minimises this temperature drop leading to
effective heat transfer and reduced fuel consumption.
